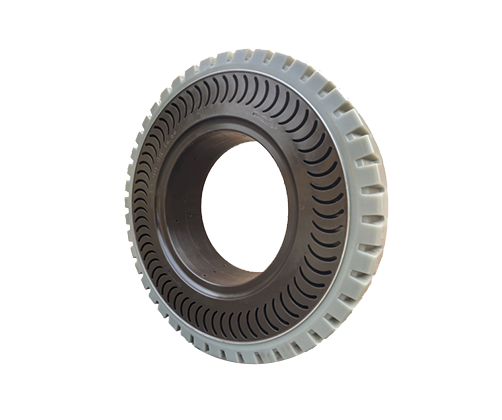

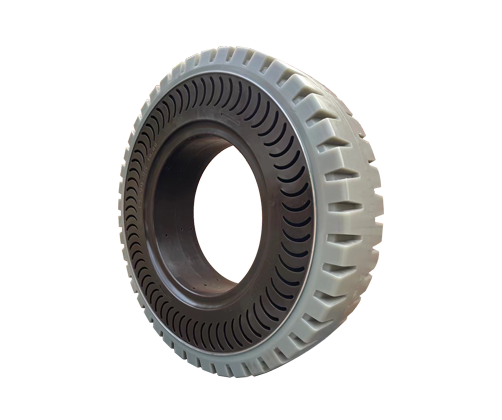

Pattern PU OTR Tires
We present solutions for the applications where rubber solid tire may fail fast or when customers want to decrease the cost per km.
Main Features comparing with rubber solid tires:
Life-time more than 3 times.
Much higher loading capacity.
Better Environmental protection, more eco-friendly and odor-free.
Better non-marking property.
No slippage.
Lower rolling resistance.
The same grip and elasticity.
Resilient, good shock-absorption and traction.
Main Features comparing with rubber solid tires:
Life-time more than 3 times.
Much higher loading capacity.
Better Environmental protection, more eco-friendly and odor-free.
Better non-marking property.
No slippage.
Lower rolling resistance.
The same grip and elasticity.
Resilient, good shock-absorption and traction.
| Size | Max Loading Capacity(kg) |
Rim Size |
||||||
|---|---|---|---|---|---|---|---|---|
| inch | mm | 10km/h | 15km/h | 25km/h | 35km/h | 45km/h | 55km/h | inch |
| 3.20-8 | 318x102 | 1,000 | 950 | 850 | 750 | 650 | 550 | 3.00 |
| 3.60-8 | 364x102 | 1,150 | 1,090 | 980 | 860 | 750 | 630 | 3.00 |
| 4.00-8 | 414x102 | 1,250 | 1,190 | 1,060 | 940 | 810 | 690 | 3.00 |
| 5.00-8 | 465x102 | 1,350 | 1,280 | 1,150 | 1,010 | 880 | 740 | 3.00 |
| 5.00-8 | 465x115 | 1,500 | 1,425 | 1,275 | 1,125 | 975 | 825 | 3.50 |
| 15x4.5-8 | 390x102 | 1,200 | 1,140 | 1,020 | 900 | 780 | 660 | 3.00 |
| 16x6-8 | 416x152 | 1,800 | 1,710 | 1,530 | 1,350 | 1,170 | 990 | 4.33 |
| 18x7-8 | 461x152 | 1,900 | 1,805 | 1,615 | 1,425 | 1,235 | 1,045 | 4.33 |
| 6.00-9 | 530x132 | 1,800 | 1,710 | 1,530 | 1,350 | 1,170 | 990 | 4.00 |
| 21x8-9 | 530x182 | 2,800 | 2,660 | 2,380 | 2,100 | 1,820 | 1,540 | 6.00 |
| 200/50-10 | 455x193 | 2,600 | 2,470 | 2,210 | 1,950 | 1,690 | 1,430 | 6.50 |
| 200/50-10L | 462x193 | 2,600 | 2,470 | 2,210 | 1,950 | 1,690 | 1,430 | 6.50 |
| 6.50-10 | 570x152 | 2,500 | 2,375 | 2,125 | 1,875 | 1,625 | 1,375 | 5.00 |
| 23x9-10 | 590x203 | 3,500 | 3,325 | 2,975 | 2,625 | 2,275 | 1,925 | 6.50 |
| 23x10-12 | 600x235 | 4,000 | 3,800 | 3,400 | 3,000 | 2,600 | 2,200 | 8.00 |
| 7.00-12 | 666x162 | 3,000 | 2,850 | 2,550 | 2,250 | 1,950 | 1,650 | 5.00 |
| 25x10-12 | 640x235 | 4,800 | 4,560 | 4,080 | 3,600 | 3,120 | 2,640 | 8.00 |
| 27x10-12 | 687x235 | 5,000 | 4,750 | 4,250 | 3,750 | 3,250 | 2,750 | 8.00 |
| 28x9-15 | 708x217 | 4,600 | 4,370 | 3,910 | 3,450 | 2,990 | 2,530 | 7.00 |
| 28x12-15 | 708x295 | 6,200 | 5,890 | 5,270 | 4,650 | 4,030 | 3,410 | 9.75 |
| 250/70-15 | 728x217 | 4,650 | 4,420 | 3,950 | 3,490 | 3,020 | 2,560 | 7.00 |
| 300-15 | 778x250 | 5,800 | 5,510 | 4,930 | 4,350 | 3,770 | 3,190 | 8.00 |
| 355/65-15 | 817x295 | 7,000 | 6,650 | 5,950 | 5,250 | 4,550 | 3,850 | 9.75 |
| 8.25-15 | 778x200 | 4,600 | 4,370 | 3,910 | 3,450 | 2,990 | 2,530 | 6.50 |
| 9.00-16 | 900x200 | 5,400 | 5,130 | 4,590 | 4,050 | 3,510 | 2,970 | 6.50 |
| 8.25-20 | 1008x200 | 6,000 | 5,700 | 5,100 | 4,500 | 3,900 | 3,300 | 6.50 |
| 9.00-20 | 1008x215 | 7,000 | 6,650 | 5,950 | 5,250 | 4,550 | 3,850 | 7.00 |
| 10.00-20 | 1023x230 | 8,000 | 7,600 | 6,800 | 6,000 | 5,200 | 4,400 | 7.50 |
| 11.00-20 | 1028x247 | 9,500 | 9,025 | 8,075 | 7,125 | 6,175 | 5,225 | 8.00 |
| 12.00-20 | 1093x260 | 10,500 | 9,975 | 8,925 | 7,875 | 6,825 | 5,775 | 8.50 |
| 12.00-22.5 | 1162x260 | 11,000 | 10,450 | 9,350 | 8,250 | 7,150 | 6,050 | 8.50 |
| 12.00-24 | 1205x260 | 11,000 | 10,450 | 9,350 | 8,250 | 7,150 | 6,050 | 8.50 |
| 14.00-24 | 1225x305 | 15,000 | 14,250 | 12,750 | 11,250 | 9,750 | 8,250 | 10.00 |
| 13.00-25 | 1245x276 | 13,000 | 12,350 | 11,050 | 9,750 | 8,450 | 7,150 | 9.00 |
| 14.00-25 | 1250x305 | 15,500 | 14,725 | 13,175 | 11,625 | 10,075 | 8,525 | 10.00 |
